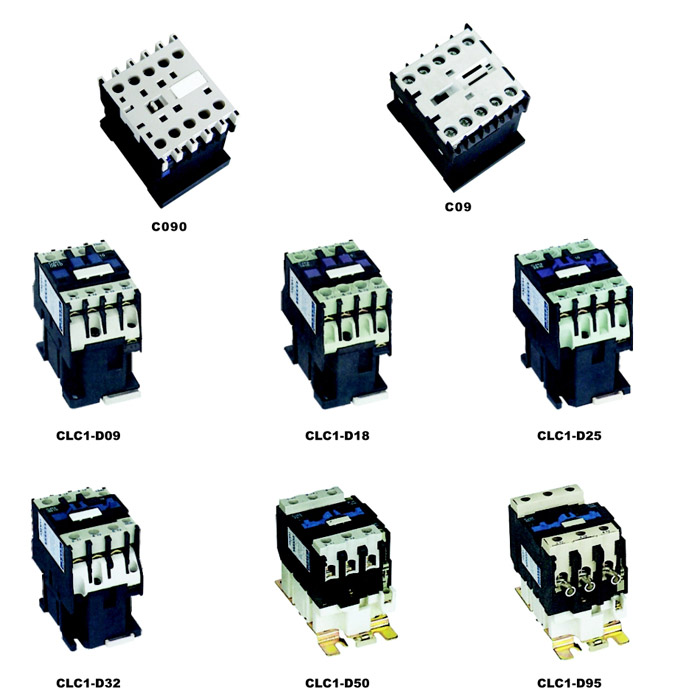

CLC1-D AC Contactor

 CLC1-D AC Contactor
Add to Inquiry Basket
print this page Print This Page
live messenger Live Messenger
skype me Skype Me
e-mail us caleb@mollelec.com.cn

Applications:
  CLC1-D series AC Contactor is suitable for using in the circuit up to rated voltage 660V AC 50Hz or 60Hz,rated current up to 95A,for making,breaking,frequently staring & machine interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electormagnetic stater.The Contactor is produced accrding to IEC947-2,VDE0660 & BS5452.

Specifications:
Type
CLC1-D09
CLC1-D12
CLC1-D18
CLC1-D25
CLC1-D32
Rated operation Current(A)
AC-3
9
12
18
25
32
AC-1
3.5
5
7.7
8.5
12
AC3-capacity of phase
3 squirrel -cage motor
ac3(KW)
220/230V
2.2
3
4
5.5
7.5
380/400V
4
5.5
7
11
15
415V
4
5.5
9
11
15
440V
4
5.5
9
11
15
500V
5.5
7.5
10
15
18.5
660/690V
5.5
7.5
10
15
18.5
Rated heat current(A)
20
20
32
40
50
Electrical life
AC4 ×104
20
20-15
20-7
15-7
15-7
AC3 × 106
2
2
2
2
2
Mechanical life × 106
20
20
20
20
20
Nubmer of the contacts
3P+NO
3P+NC
